Eccentric Lever O-Ring Installation

1. Press 1st O-Ring on with your finger.
76E887E9-603E-4947-A30B-3D42A5DB3B62_edi
2. Roll 1st O-Ring into the 1st groove.
4DB4BB97-AE05-4A73-8EB7-3D7BB59100E4_edi

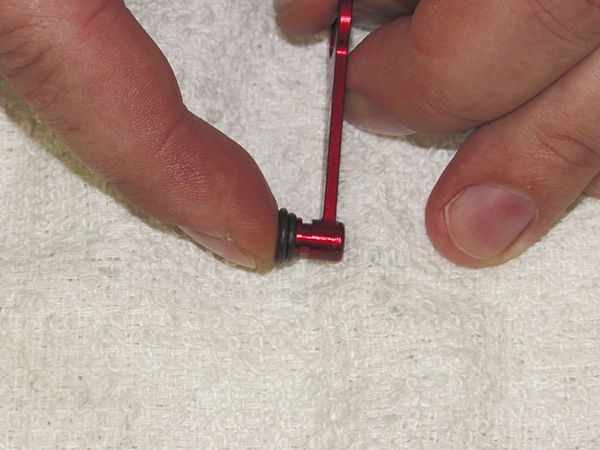

3. Press 2nd O-Ring on.
12B1D01F-2371-4468-9DAC-A924A53DAF06_edi
4. Roll 2nd O-Ring on over 1st O-Ring, and into the 2nd groove
86D77CCD-0E47-44F8-9E1C-D48F95503778_edi
5. Both O-Rings installed.
